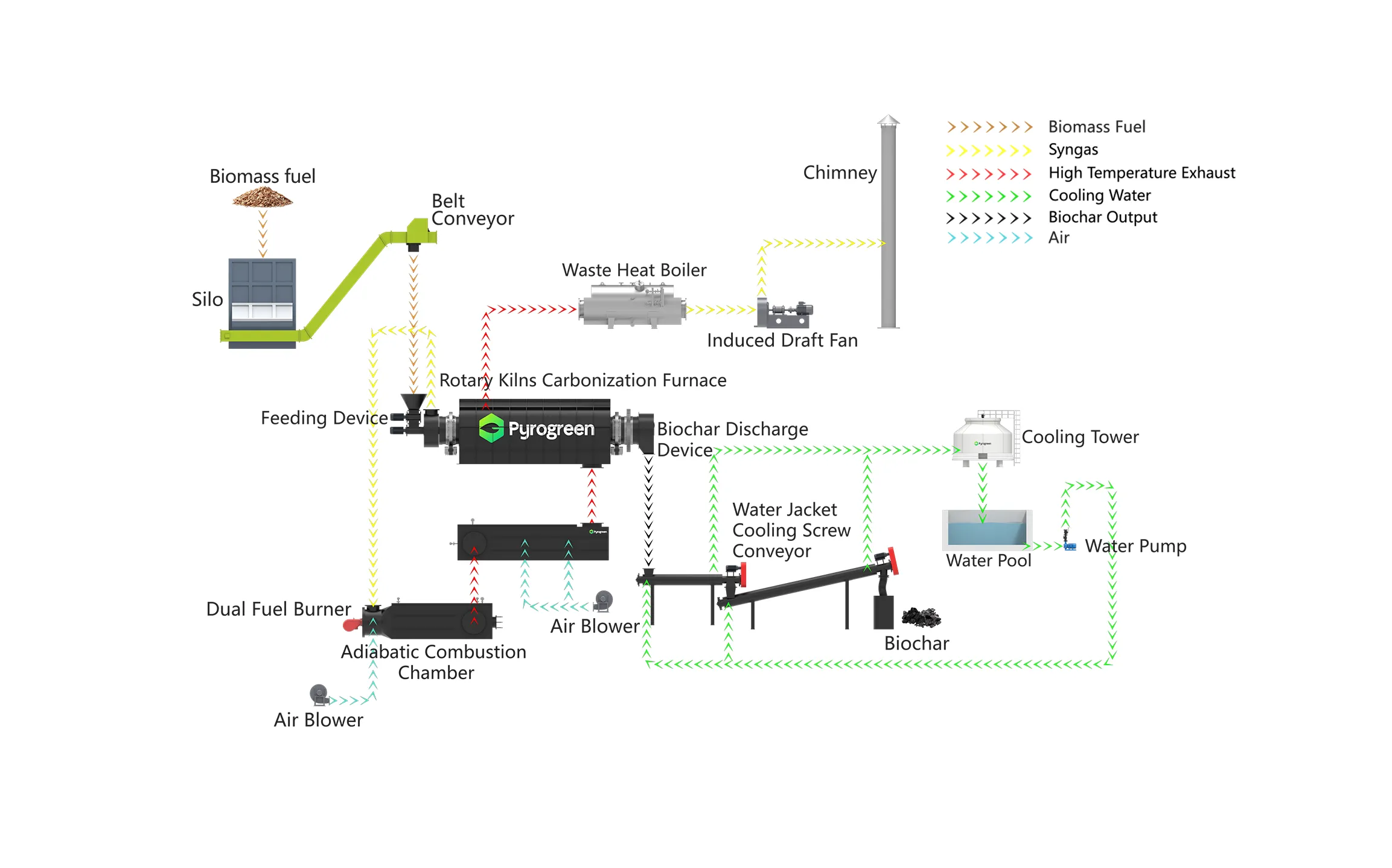

Process Flow Diagram

What wo do

Pyrogreen specializes in advanced thermochemical processing systems, providing customized rotary kiln equipment for the continuous production of biochar from a wide range of biomass feedstocks. Achieving consistent, high-quality biochar requires a thorough understanding of feedstock behavior, heat transfer and pyrolysis process control. Our process specialists work closely with customers to configure each system according to their feedstock characteristics, production requirements and target product specifications.

Advantage:

  • Clean emissions with reduced treatment costs.

  • High pyrolysis efficiency with precise temperature control.

  • Stable high-temperature operation with low heat loss.

  • Flexible control of biochar volatile content.

  • No leakage or dust emissions.

Parameters

Biomass Rotary Kilns Carbonizer

Model

BRKC600

BRKC1000

BRKC3500

Feed Rate

0.6m³/h(200 Kg/Hr)

1m³/h(300 Kg/Hr)

3.5m³/h(1000 Kg/Hr)

Footprint(L*H)

12m*10.5m

15m*10.5m

18m*12m

Working Mode

Continuous

Feed Requirements

Size≤50mm, MC≤15%

Consumption

Indirect Heating Rotary Kilns Type

Control Mode

PLC Control System

Material

SS310S+SS304+Carbon Steel

Pressure

Micro Negative Pressure

Heating Fuel

Diesel, natural gas, heavy oil, etc(Just for starting)

Heating Mode

Indirect Heating

Noise(dB)

≤80

Cooling Mode

Circulating Water Cooling

Rotation Mode

External Gear Rotation

Biochar Yield

Max 30%

Pyrolysis Temperature(°C): 500-700°C (Actual operating temperature depends on feedstock properties and target biochar specifications).
