Downdraft Fixed-bed
Carbonization

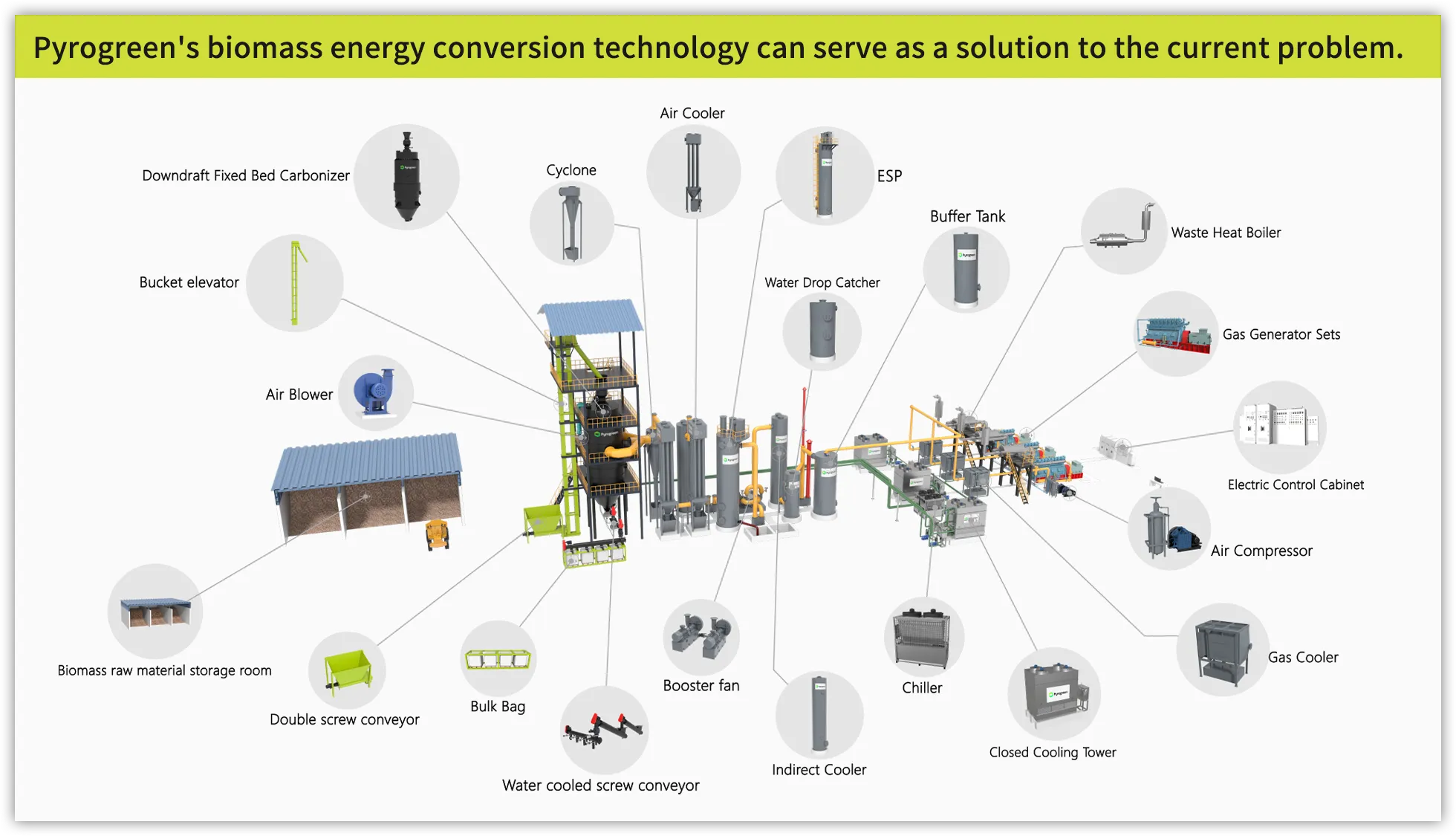

(Power Generation System/Carbonizer System)

Agricultural and forestry waste such as wood chips, straw blocks, bamboo chips, corn cob, coconut shell, biomass pellet fuel and other biomass undergo pyrolysis gasification reaction in the gasifier with lean oxygen supply, producing combustible gas and biochar.It is then used as fuel in gas engine to generate electricity.The biochar is used in our daily life,industrial and agriculture production.

Power Generation Solution

Technical Specification of UFBG Series Biomass Gasification Power Generation System
Model	WUFBG2400-5200
Gasifier Type	Updraft Fixed Bed Gasifier
Gas Purification System Type	Dry Type
Gasify Agent	Steam and Hot Air
Biomass Size Requirements	Diameter: 20mm-80mm, Length: 20mm-80mm
Biomass Moisture Requirements	≥30%(WB) MAX55%(WB)
Rated Gas Flow (Nm /hr)	1.000-10,000 Per Module
Average Gas Calorific Value(Kcal/Nm³)	1200-1800
Rated Thermal Output after Purification Kcal/hr)	1,200,000-12,000.000
For Power Generation	500-5000kW Per Module
Cold Gas Mode(After Purification)	≥70-75%
Temperature of Gas at Gasifier Outlet (°c)	≤100℃
Temperature of Gas at ESP Outlet(°C)	≤45°C
Ash Removal	Wet Ash / Dry Ash Removal System

Heating Solution

Parameters		Biomass Downdraft Fixed Bed Carbonizer(DFBC-BC/B)
Model		UFBC1000	UFBC1500	UFBC2000	UFBC2500	UFBC3000	UFBC4000	UFBC5000
Gasifier Type		Updraft fixed Bed Carbonizer
Range of Biomass Input		Wood chips, bamboo chips, coconut shell and etc.
Size Requirement		20-100 mm
Moisture Requirement		≤30%
Biomass Consumption		1000Kg/H	1500Kg/H	2000Kg/H	2500Kg/H	3000Kg/H	4000Kg/H	5000Kg/H
Heat Value of Gas		>1200 Kcal/Nm3
Biochar Output(Kg/H)		≤150	≤225	≤300	≤375	≤450	≤600	≤750
Heat Output	Kcal	≤1,764,706	≤2,647.059	≤3,529,412	≤4,411,765	≤5,294,118	≤7.058,824	≤8,823.529
	KW	≤2,052	≤3,078	≤4,104	≤5,130	≤6,156	≤8,208	≤10,260
