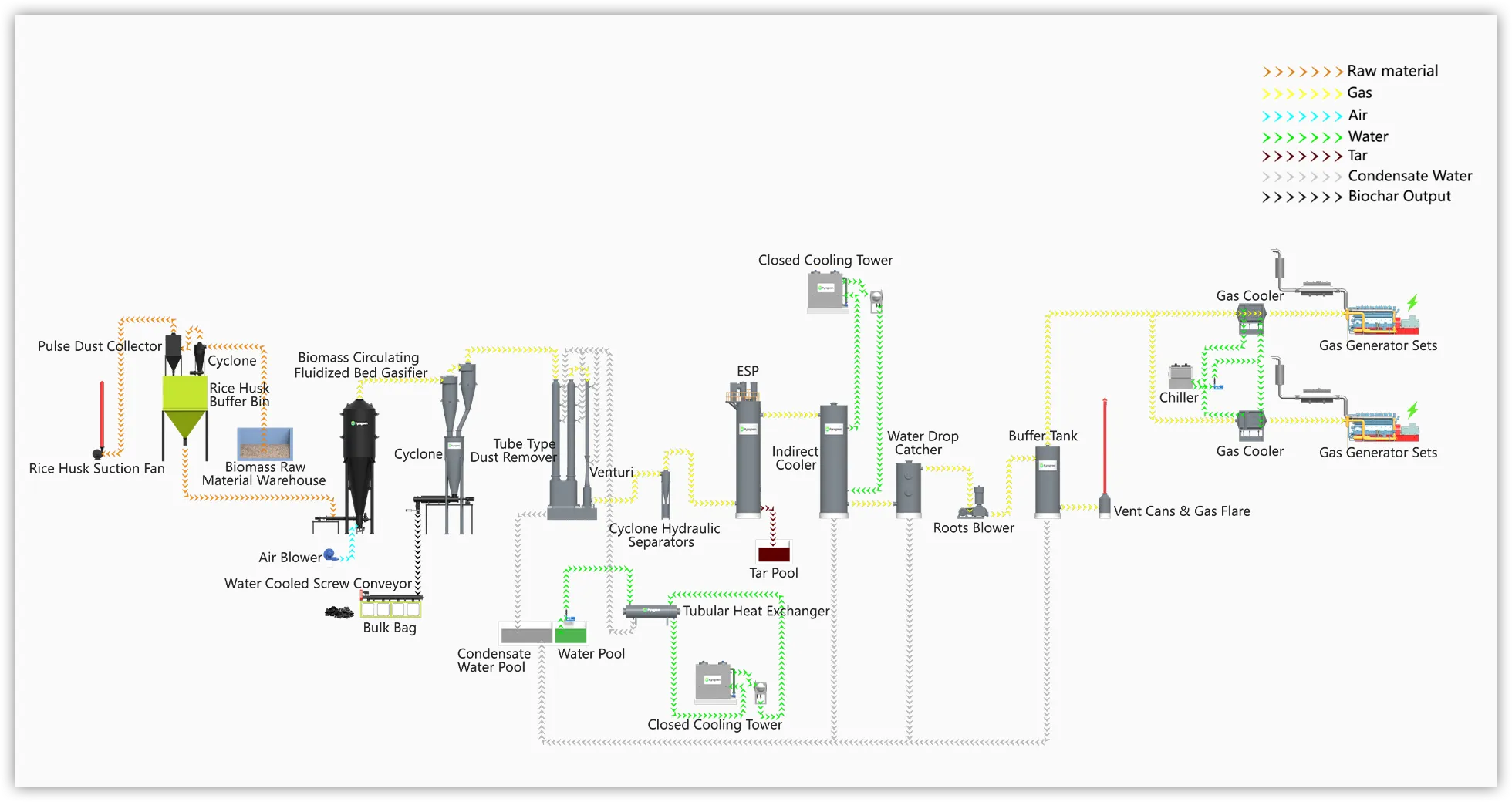

Flow Chart:

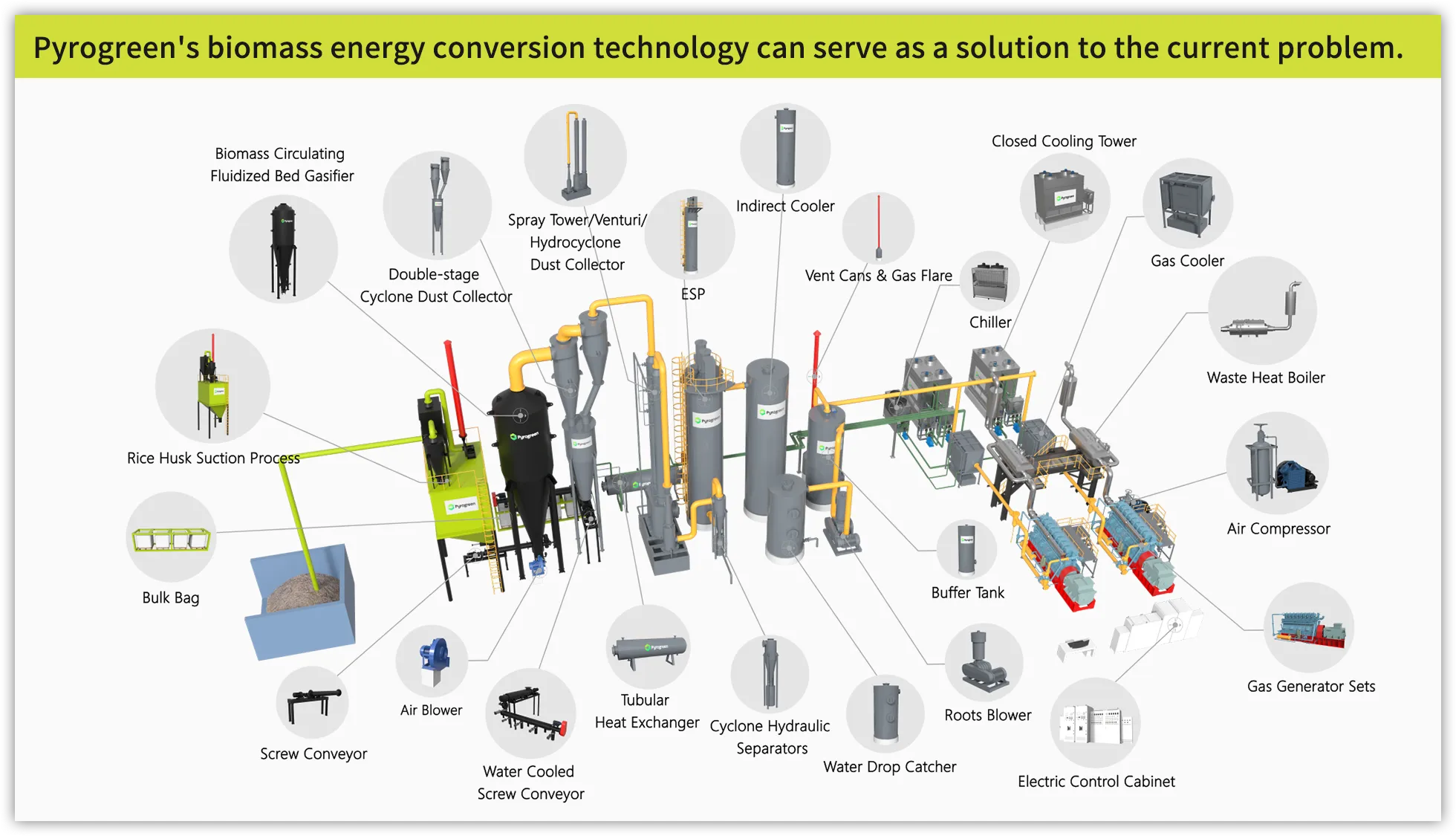

The Process

Agricultural and forestry waste such as wood chips, straw blocks, bamboo chips, corn cob, coconut shell, biomass pellet fuel and other biomass undergo pyrolysis gasification reaction in the gasifier with lean oxygen supply, producing combustible gas and biochar.It is then used as fuel in gas engine to generate electricity.The biochar is used in our daily life,industrial and agriculture production.






Technical Specification of DFBG-BC/B Series Biomass Gasification Power Generation System

Model

200DFBG

400DFBG

500DFBG

600DFBG

800DFBG

1000DFBG

1200DFBG

1500DFBG

2000DFBG

3000DFBG

Rated Power (kw)

200

400

500

600

800

1000

1200

1500

2000

3000

Rated Frequency(Hz)

50/ 60HZ

Rated Voltage(v)

220 /400/440/6300/6600/11000/13800

Model of GasiferGasifier

DFBG200

DFBG400

DFBG500

DFBG600

DFBG800

DFBG1000

DFBG1200

DFBG1500

DFBG2000

DFBG3000

Gasifier Type

Downdraft Fixed Bed Gasifier(DFBG)

Biomass Moisture Requirement

≤20%(Wet Basis)

Biomass Size Requirement

≤8-15mm

Biomass
consumption(Kg/Hr)

200-360

400-720

500-900

600-1080

800-1440

1000-1800

1200-2160

1500-2700

2000-3600

3000-5400

Gas Production(Nm3/h)

500-600

1000-1200

1250-1500

1500-1800

2000-2400

2500-3000

3000-3600

3750-4500

5000-6000

7500-9000

Ash  Discharge Type

Dry  Type

Type Of Gas Purificatian

Dry Type Gas Purification System

Heat Value Of Gas

1200-1300Kcal /Nm3

Gas Compasition

CO:12-18%;CO2:10-16%;CH4:4-8%;H2:3-7%;CnHm:1-14%;O2:0.5-1.2%;N2:54-60%

Model of Genset

100GFLS

400GFLS

500GFLS

300GFLS

400GFLS

1000GFLS

400GFLS

500GFLS

1000GFLS

1000GFLS

Qty Of Genset

2 Set

1 Set

1Sets

2 Set

2 Set

1 Set

3 Sets

3 Sets

2 Set

3 Sets
