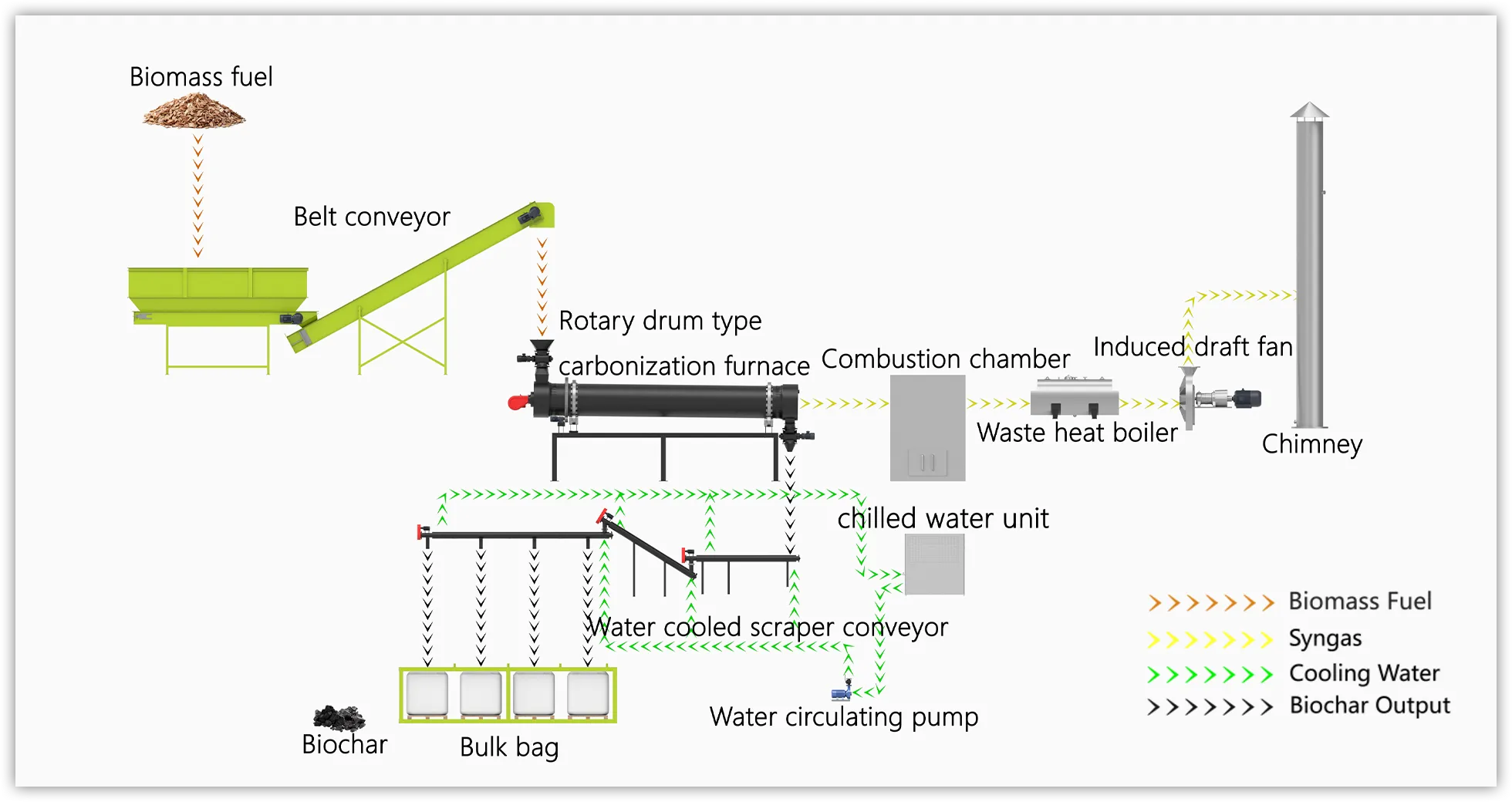

Flow Chart:
The Process
As a leader in advanced thermochemistry processing systems, Pyrogreen provides customized rotary kiln type and screw type carbonization/torrefaction system for the production of biochar from different kinds of biomass. Sometimes referred to as torrefaction, the pyrolysis of biomass into a high quality biochar product is a technical endeavor, requiring advanced knowledge of thermochemistry processing principles. Pyrogreen process experts would work with you to design this system around your unique source of material.
Advantage:
-
Modular Concept, easy transportation and installation.
-
Low PAHs content in biochar.
-
Uniform heating with reduced heat loss and transport cost.
-
High waste heat recovery efficiency.
-
Clean and compliant emissions.
| Pyrogreen Series | BRKC600(IH) BRKC1200(IH) | BRKC2000(IH) | BRKC4000(IH) | BRKC6000(IH) | BRKC8000(IH) | BRKC10000(IH) | |||
 |
 |
 |
 |
 |
 |
 |
|||
| Feed Rate | 300Kg/Hr | 600Kg/Hr | 1000Kg/Hr | 2000Kg/Hr | 3000Kg/Hr | 4000Kg/Hr | 5000Kg/Hr | ||
| Biochar Output | Max 30% | Max 30% | Max 30% | Max 30% | Max 30% | Max 30% | Max 30% | ||
| Note:If there are any deviations in the above data,please refer to the actual product and market conditions.The core components are all made of310S. | |||||||||
| Carbonization temperature: set range 500-650°C, Residence time: set range 30-45 min. | |||||||||
