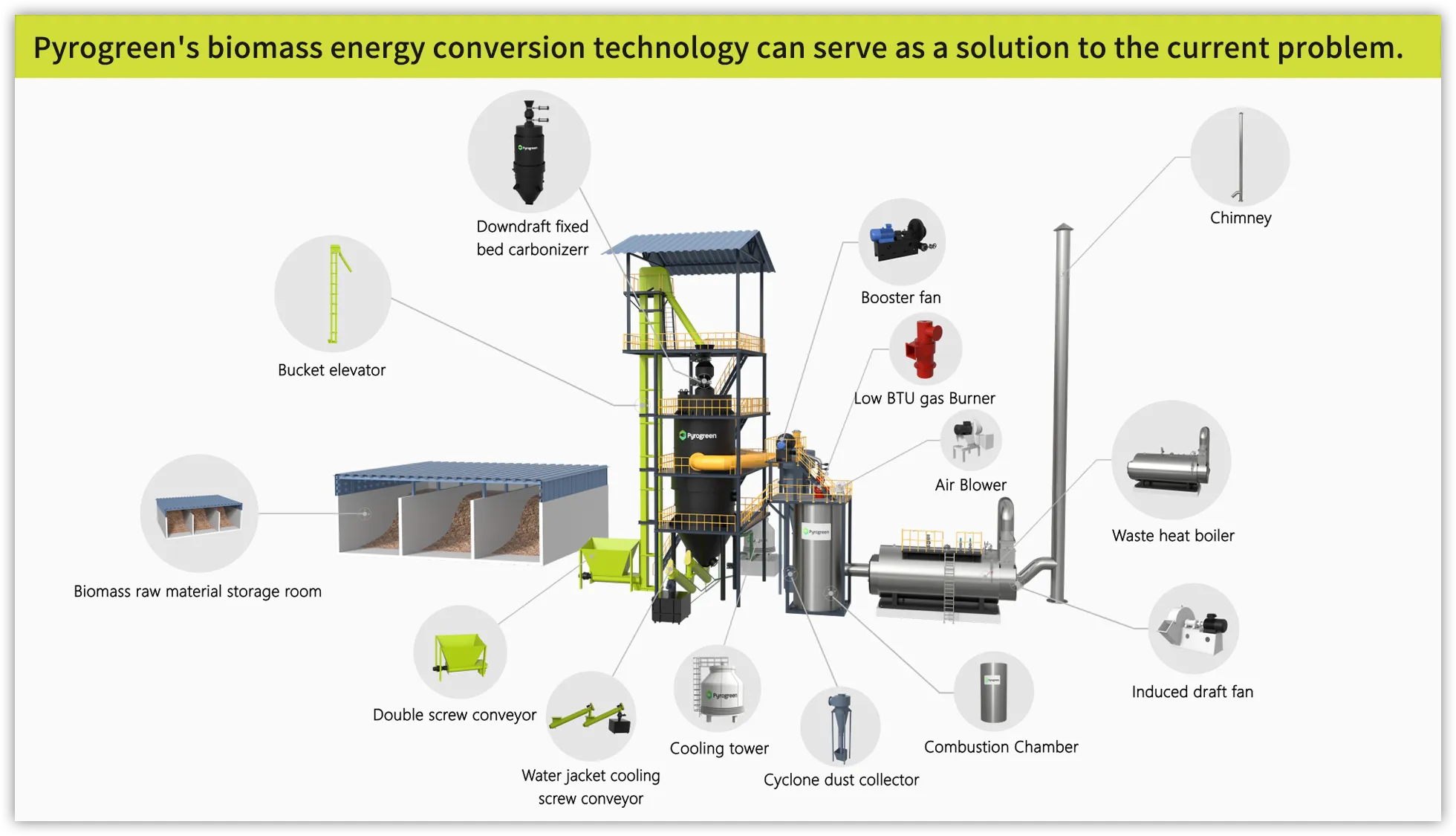

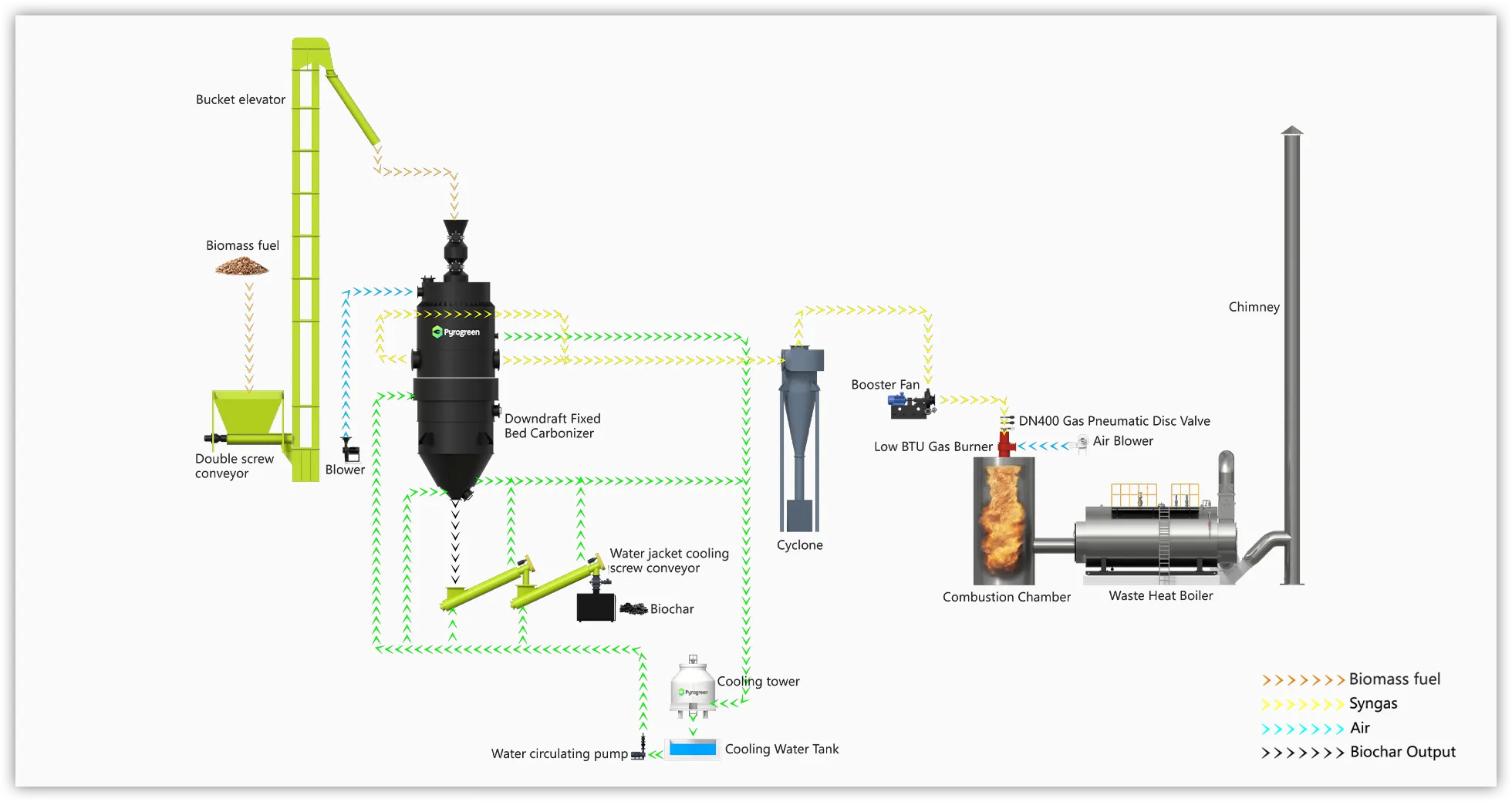

Flow Chart:
The Process
The Process
Agricultural and forestry waste such as wood chips, straw blocks, bamboo chips, corn cob, coconut shell, biomass pellet fuel and other biomass undergo pyrolysis gasification reaction in the gasifier with lean oxygen supply, producing combustible gas and biochar.The combustible gas converted from biomass is directly piped and burned in the adiabatic furnace to produce hot flue gas whose heat is exchanged in a waste heat boiler to produce steam (hot water) for residential or industrial use. The biochar is used in our daily life, industrial and agriculture production.
Parameters |
Biomass Downdraft Fixed Bed Carbonizer(DFBC-BC/B) |
||||
Model |
DFBC1000-BC/B |
DFBC1200-BC/B |
DFBC1600-BC/B |
DFBC2000-BC/B |
|
Gasifier Type |
Downdraft Fixed Bed Carbonizer |
||||
Range of Biomass Input |
Rice husk, straw, bagasse, peanut shell, wood chips, palm shell and etc. |
||||
Size Requirement |
Diameter:20-80mm |
||||
Moisture Requirement |
≤15-20% |
||||
Biomass Consumption |
750-1000 |
900-1200 |
1200-1600 |
1500-2000 |
|
Gas Production(Nm3/H) |
1250-1500 |
1500-1800 |
2000-2400 |
2500-3000 |
|
Heat Value of Gas |
1000-1100 Kcal/Nm: |
||||
Biochar Output(Kg/H) |
≤250 |
≤300 |
≤400 |
≤550 |
|
Heat |
Kcal |
≤1,375,000 |
≤1,650,000 |
≤2,200,000 |
≤2,750,000 |
|
KW |
≤1.599 |
<1,919 |
≤2,558 |
≤3,198 |
Product Video
Downdraft Fixed-bed Carbonizer (DFBC-BC/B)
