Technical Specification of DFBG-BC/B Series Biomass Gasification Power Generation System

Model

50DFBG

100DFBG

200DFBG

300DFBG

400DFBG

500DFBG

600DFBG

800DFBG

1000DFBG

Rated Power (kw)

50

100

200

300

400

500

600

800

1000

Rated Frequency(Hz)

50/ 60HZ

Rated Voltage(v)

220 /400/440/6300/6600/11000/13800

Model of GasiferGasifier

DFBG50

DFBG100

DFBG200

DFBG300

DFBG400

DFBG500

DFBG600

DFBG800

DFBG1000

Gasifier Type

Downdraft Fixed Bed Gasifier(DFBG)

Biomass Moisture Requirement

≤16%(Wet Basis)

Biomass Size Requirement

Less than 1cm

Biomass
consumption(Kg/Hr)

75-100

150-200

300-400

450-600

600-800

750-1000

900-1200

1200-1600

1500-2000

Gas Production(Nm /h)

125-150

250-300

500-600

750-900

1000-1200

1250-1500

1500-1800

2000-2400

2500-3000

Biochar Discharge Type

Dry Ash Type

Biochar Production

20-30%

Type Of Gas Purificatian

Dry Type Gas Purification System

Heat Value Of Gas

1000-1100Kcal /Nm3

Gas Compasition

C0:15~20%;CO2:8~12%;CH4:Up to 4%;H2: 10-15%;N2: 45~55%

Model of Genset

50GFLS

100GFLS

100GFLS

300GFLS

400GFLS

500GFLS

300GFLS

400GFLS

1000GFLS

Qty Of Genset

1 Set

1 Set

2 Sets

1 Set

1 Set

1 Set

2 Sets

2 Sets

1 Set

Parameters

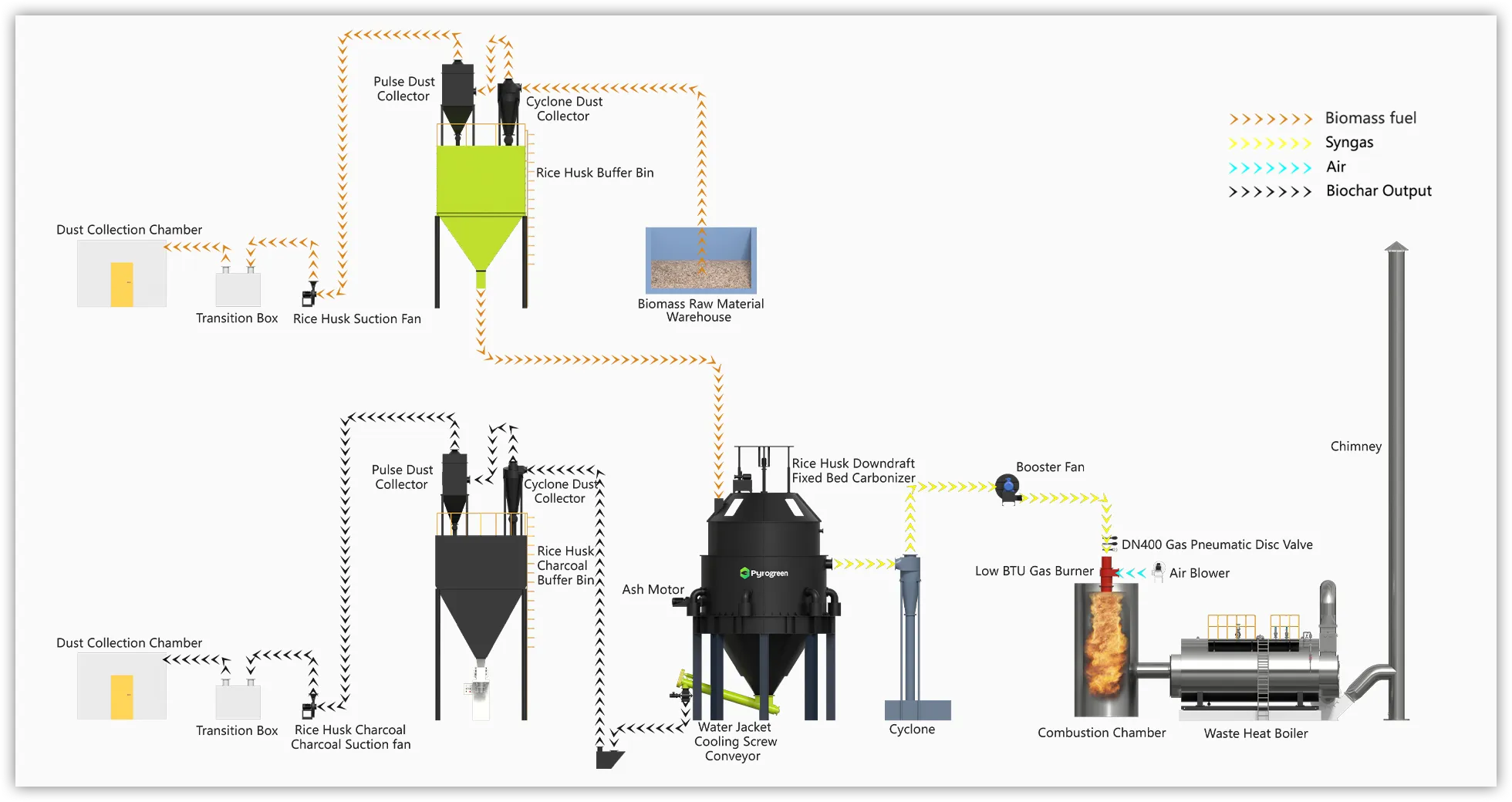

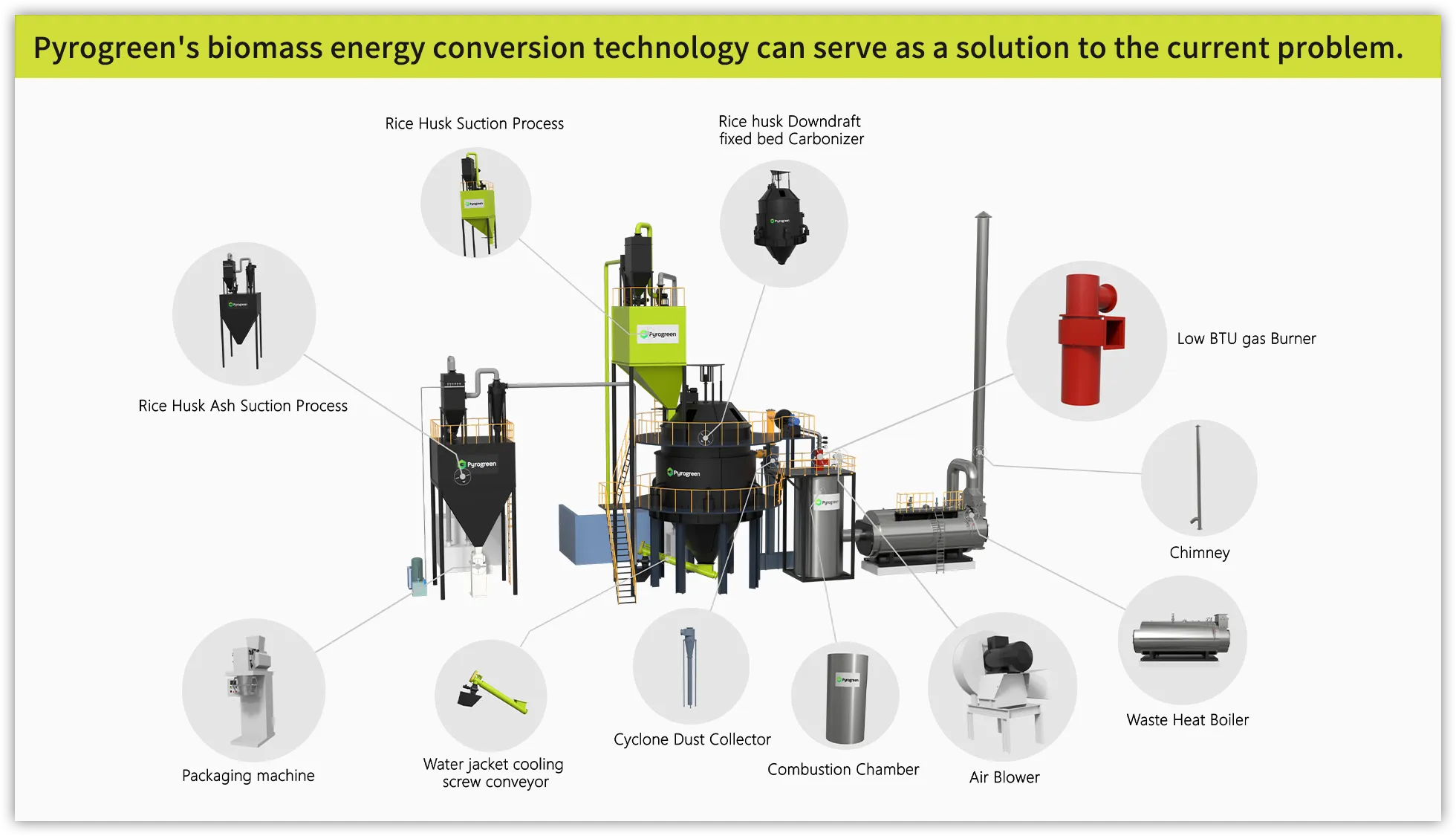

Biomass Downdraft Fixed Bed Carbonizer(DFBC-BC/B)

Model

UFBC1000

UFBC1500

UFBC2000

UFBC2500

UFBC3000

UFBC4000

UFBC5000

Gasifier Type

Updraft fixed Bed Carbonizer

Range of Biomass Input

Wood chips, bamboo chips, coconut shell and etc.

Size Requirement

20-100 mm

Moisture Requirement

≤30%

Biomass Consumption

1000Kg/H

1500Kg/H

2000Kg/H

2500Kg/H

3000Kg/H

4000Kg/H

5000Kg/H

Heat Value of Gas

>1200 Kcal/Nm3

Biochar Output(Kg/H)

≤150

≤225

≤300

≤375

≤450

≤600

≤750

Heat
Output

Kcal

≤1,764,706

≤2,647.059

≤3,529,412

≤4,411,765

≤5,294,118

≤7.058,824

≤8,823.529

KW

≤2,052

≤3,078

≤4,104

≤5,130

≤6,156

≤8,208

≤10,260
