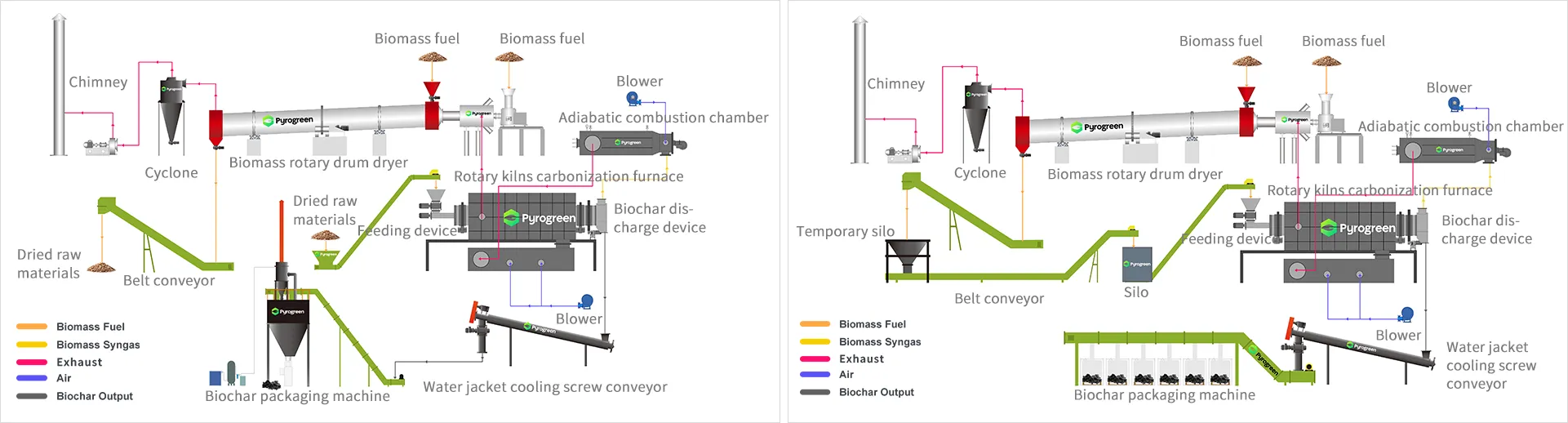

Process Flow Diagram

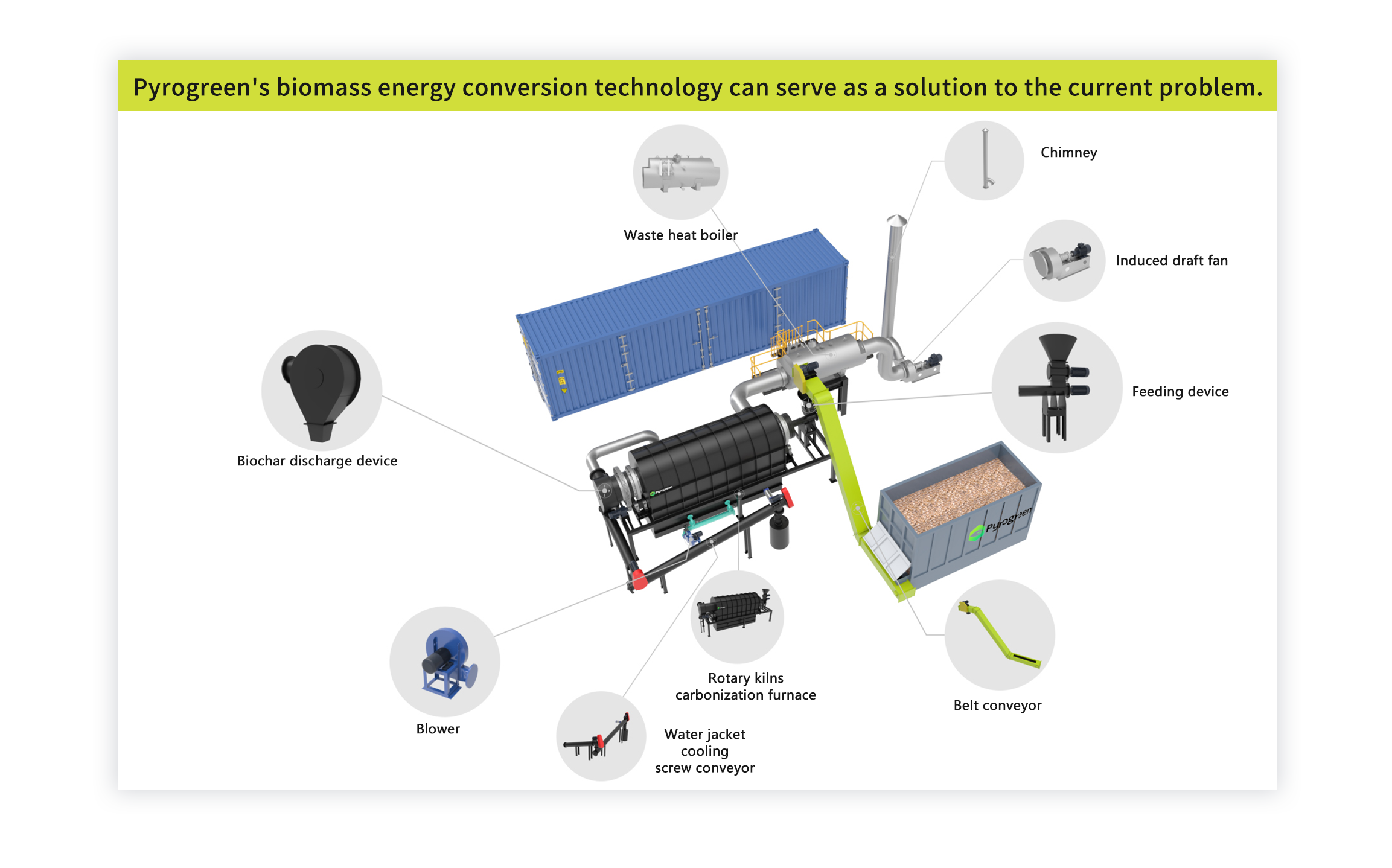

The Process

As a leader in advanced thermochemistry processing systems, Pyrogreen provides customized rotary kiln type and screw type carbonization/torrefaction system for the production of biochar from different kinds of biomass. Sometimes referred to as torrefaction, the pyrolysis of biomass into a high quality biochar product is a technical endeavor, requiring advanced knowledge of thermochemistry processing principles. Pyrogreen process experts would work with you to design this system around your unique source of material.

Advantage:

  • Clean emissions with reduced treatment costs.

  • High pyrolysis efficiency with precise temperature control.

  • Stable high-temperature operation with low heat loss.

  • Flexible control of biochar volatile content.

  • No leakage or dust emissions.

Parameters

Biomass Rotary Kilns Carbonizer

Model

BRKC600

BRKC1000

BRKC3500

Feed Rate

0.6m³/h(200kg)

1m³/h(300kg)

3.5m³/h(1T)

Footprint(L*H)

14m*10.5m

15m*10.5m

18m*12m

Working Mode

Continuous

Feed Requirements

Size≤50mm, MC≤15%

Consumption

Indirect Heating Rotary Kilns Type

Control Mode

PLC Control System

Material

SS310S+Carbon Steel

Pressure

Micro Negative Pressure

Heating Fuel

Diesel, natural gas, heavy oil, etc

Heating Mode

Indirect Heating

Noise(dB)

≤80

Cooling Mode

Circulating Water Cooling

Rotation Mode

External Gear Rotation

Carbonization temperature: set range 500-650°C, Residence time: set range 30-45 min.(±5℃)

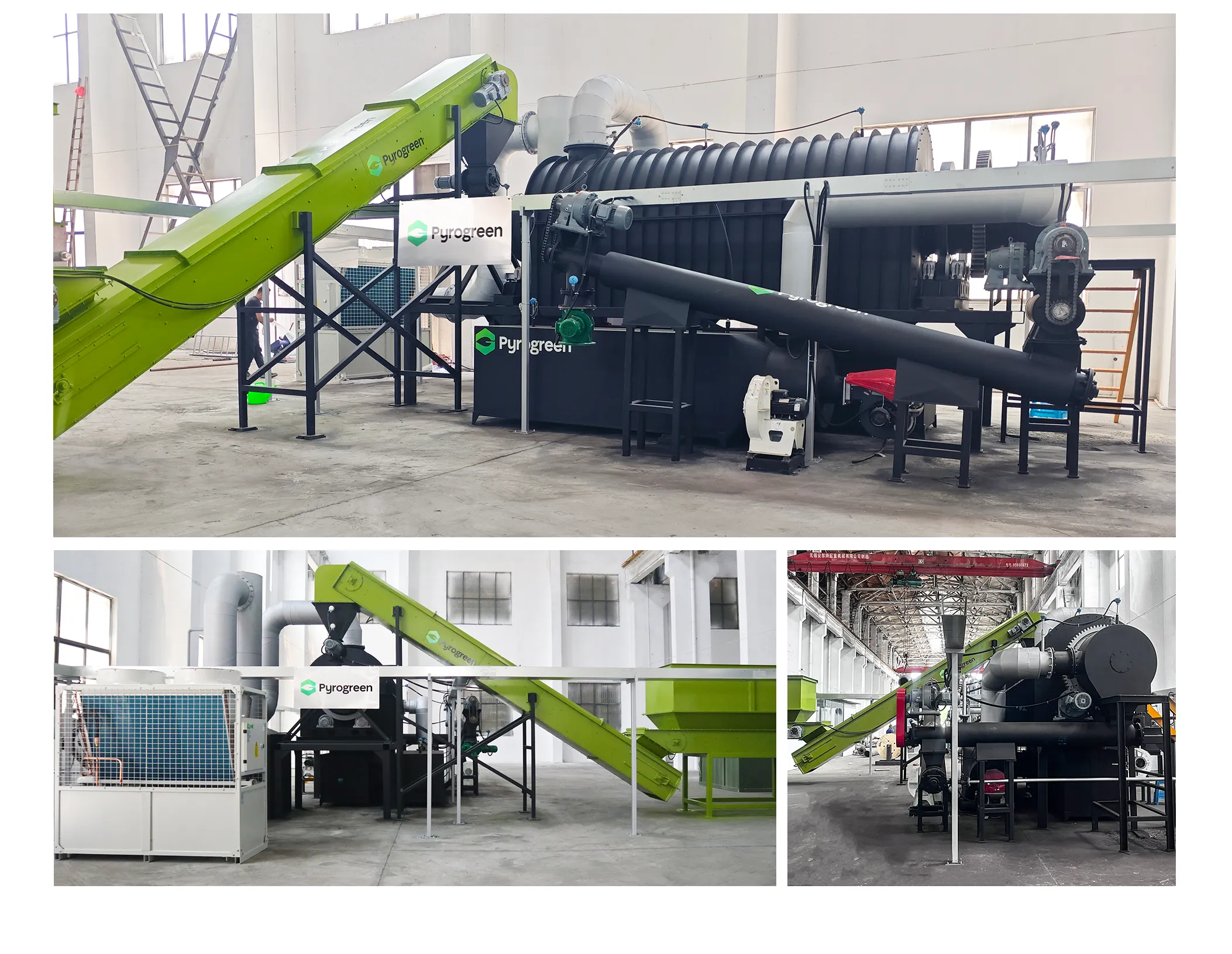

Case Showcase

Product Video

Rotary Kilns Carbonization System

Pyrogreen Biomass Rotary Kilns Carbonization System
